Locating Unknown Points: Intersection, Resection, and Modified Resection

The three triangulation techniques every navigator should own — how to locate an unknown point, how to locate yourself, and how to fix your position fast when you are on a known linear feature.

By Joshua Enyart · Founder & Head Instructor, Gray Bearded Green Beret

Former Army Ranger, Green Beret, and full-time survival instructor · three decades of professional instructor experience

Navigation is primarily a preventative skill — the ability to move from one point to another without getting lost. But the close second is the skill of figuring out where you are when something has gone sideways. That second skill is triangulation, and it comes in three practical forms: intersection, resection, and modified resection.

This guide covers when to use each, how each one works conceptually, and the setup rules that make sure the azimuths you shoot produce an accurate fix on the map. It is the eighth and final post in our Master Navigator™ Map Reading and Land Navigation cluster, paired with Part 8 of the Master Navigator™ PDF Series.

Why Triangulation Matters

Triangulation is a backup plan. It is what you reach for when your route has drifted, your pace count is in question, or you arrive at a feature that does not match what the map said you would find. Done correctly, a single fix restores your location and lets you step off again with confidence. Done poorly — the wrong azimuth labeling, an un-oriented map, a skipped declination conversion — triangulation produces an authoritative-looking but completely wrong answer, which is worse than no fix at all.

All three methods depend on the same underlying tool: your ability to shoot accurate azimuths from one position to another, and to plot those azimuths cleanly on the map.

Setup Rules Before You Plot

Before any of the three techniques will work, the map-to-compass reference frame has to be right. Two rules cover almost every case.

If your map is not physically oriented to north — if you are plotting at a flat surface with a protractor — any magnetic azimuth you shoot with the compass has to be converted to a grid azimuth before it is plotted. The LARS rule (Left Add, Right Subtract) and the declination diagram on the map margin drive that conversion.

If your map is oriented to north — physically aligned to magnetic north on the ground using your compass, or being plotted with a declination-adjusted compass used like a protractor — you are working inside a matched reference frame and no conversion is needed. The azimuth you shot is the azimuth you plot.

Every azimuth you write down in your field notebook should be labeled magnetic or grid. The single most common triangulation error in courses is plotting a magnetic azimuth as if it were a grid azimuth. That one mistake can put your fix hundreds of meters off in any direction.

Intersection — Locating an Unknown Point

Intersection is used when there is a feature in the distance you cannot identify on the map, and you want to locate it. It requires two or more known positions on the ground — positions you can identify on the map and recognize on the ground.

The procedure in plain terms:

From Known Point 1 (say, your current position), shoot an azimuth to the unknown feature and record it. Move to Known Point 2 (for example, a base camp or a hilltop nearby that you recognize), and shoot a second azimuth to the same unknown feature. Plot both known points on the map. Then plot each azimuth from its respective known point, extending each line out toward the unknown feature. Where the two lines cross on the map is the location of the unknown feature.

A third known point, if available, produces a small triangle instead of a single intersection — and the center of that triangle is your fix. Three azimuths are always more accurate than two when the geometry allows.

Resection — Locating Yourself

Resection is the inverse. You do not know where you are, but you can see two or more known features in the distance — a recognizable water tank, a church steeple, a named ridge, a fire tower. Resection uses those known features to fix your own position.

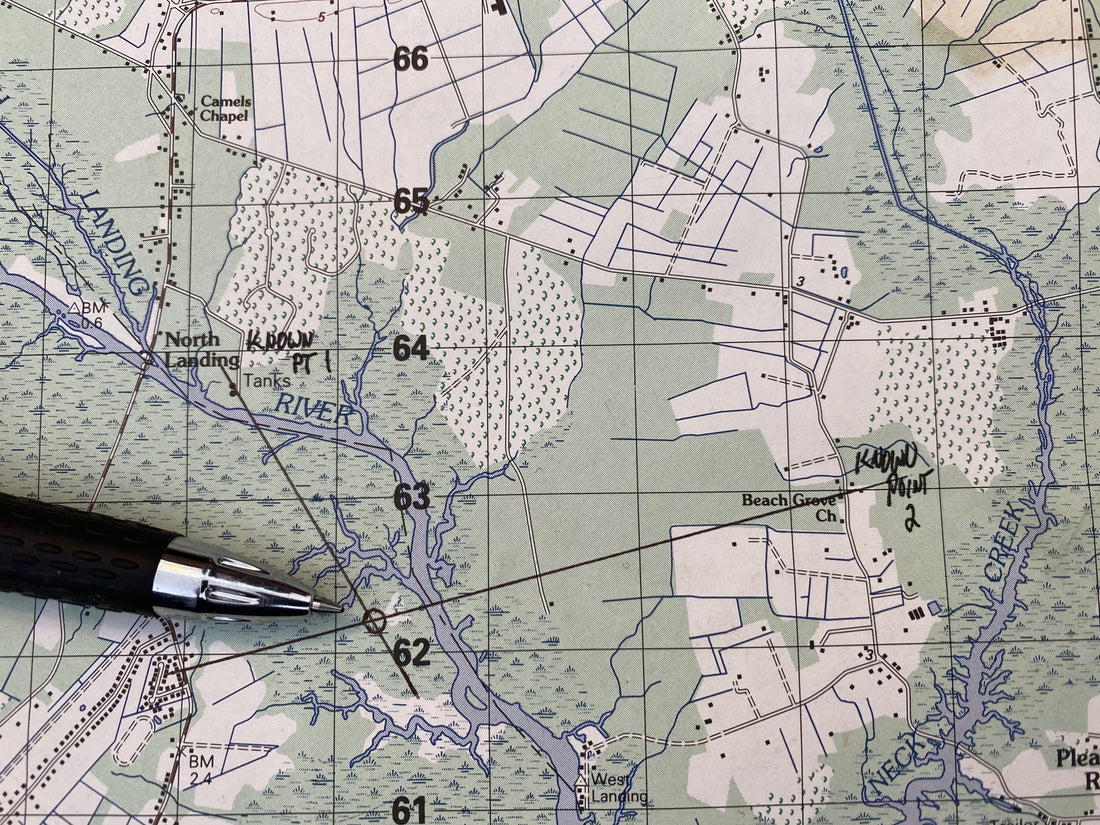

The procedure is the mirror image of intersection. Shoot an azimuth from your unknown position to Known Point 1 and record it. Shoot an azimuth to Known Point 2 and record it. Convert each azimuth to a reverse azimuth (add or subtract 180 degrees). Plot each reverse azimuth starting at the known point on the map, extending each line back in the direction of your unknown position. Where those two lines cross is where you are.

The reverse-azimuth step is what throws new navigators. The mental model: an azimuth to a feature is the direction you see it in. An azimuth from the feature back to you is 180 degrees the other way. Plotting from a known point requires the line to point in that reverse direction.

Modified Resection — When You’re on a Linear Feature

Modified resection is a fast variant used when you are standing on a known linear feature — a road, trail, stream, power line, or ridge — but do not know exactly where along it you are. The linear feature itself functions as the second known point, so you only need one distant known feature to fix your position.

The procedure is a pared-down resection. From your unknown position on the linear feature, shoot an azimuth to the distant known feature and record it. Convert to a reverse azimuth. Plot the reverse azimuth starting at the known feature on the map and extend it until it crosses the linear feature you are standing on. That crossing is where you are.

Modified resection is the fastest of the three techniques in the field because the geometry is so forgiving. One azimuth, one reverse, one plot, one fix. Most navigators who use triangulation regularly end up using modified resection far more often than full resection — because handrails, trails, and roads are almost always part of a route, and a position-on-handrail is often the only ambiguity you are trying to resolve.

Reverse Azimuth Quick Rule

Reverse-azimuth math is arithmetic that gets intimidating only because it comes up at stressful moments. The rule is:

If the azimuth is greater than 180 degrees, subtract 180. (A 220° azimuth reverses to 40°.)

If the azimuth is less than 180 degrees, add 180. (A 40° azimuth reverses to 220°.)

The rule keeps the answer between 0 and 360 degrees, which is what a compass bezel reads. Drill it until it is automatic — triangulation under fatigue is where the mental arithmetic falls apart.

Common Triangulation Mistakes

Four errors account for almost every bad fix in courses.

Un-oriented map + magnetic azimuth plotted as grid. Plotting a magnetic azimuth on an un-oriented map without converting is the single biggest error. Every azimuth has to be in the map’s reference frame before it gets plotted.

Known points that are not actually known. A feature you think is the right hilltop but have not positively identified is not a known point. Triangulation with a misidentified reference gives you a confident answer that is also completely wrong.

Shooting two azimuths from nearly the same direction. When the two known points are close together in the same direction from you, the resulting lines intersect at a shallow angle and the fix is imprecise. Whenever possible, pick known points that are roughly 60–120 degrees apart from your viewpoint.

Skipping the reverse-azimuth step in resection. Plotting the direct azimuth from the known point (instead of the reverse azimuth) puts your line in exactly the wrong direction. This is easy to catch on the map because the line will extend out away from any area you could plausibly be in — but only if you are checking.

Triangulation as Part of the System

Triangulation is the last-chance tool in the land-navigation kit, and it is only as reliable as the foundations underneath it: a compass handled correctly, a pace count that is working, a map that is read accurately, and a route plan that is disciplined enough to tell you where you expected to be when you notice something is off.

If the first seven posts in this cluster were about preventing disorientation, this last post is about recovering from it. That is the full arc of a navigator: most of the time you do not need these techniques, and the one time you do, the ability to run them under pressure is what separates a controlled recovery from a long, slow walk in the wrong direction.

Full doctrinal depth — worked examples of each technique, field-notes quick reference, and the conversion rules in every reference frame — lives in the Part 8 PDF. The full eight-part series walks the entire Master Navigator™ curriculum end to end.
